LinkTenn 32: Data Tabs
Process Data |
Graph |
Alarms |
Logging |
Events |
Profiles |
Messages |
Information |

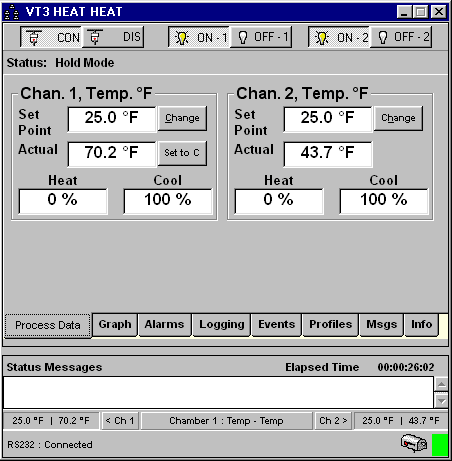

- Process Data
- displays setpoints and actual
temperature and humidity data.

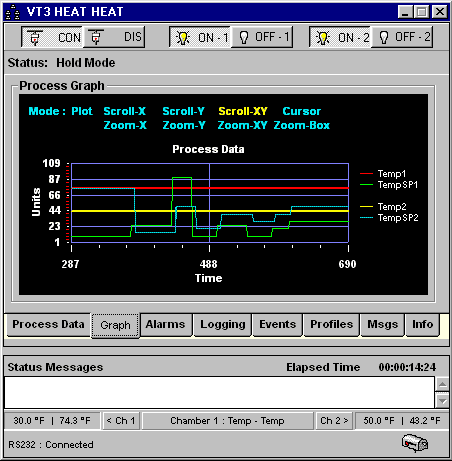

- Graphs
- displays setpoint and actual
temperature and humidity data on a line graph.

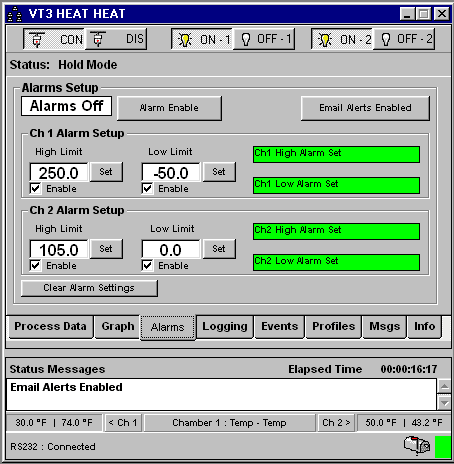

- Alarms
- sets and monitors process alarms such
as maximum allowed temperatures.
- Logging
- logs setpoint and actual temperature
and humidity data and PID values to a text file.

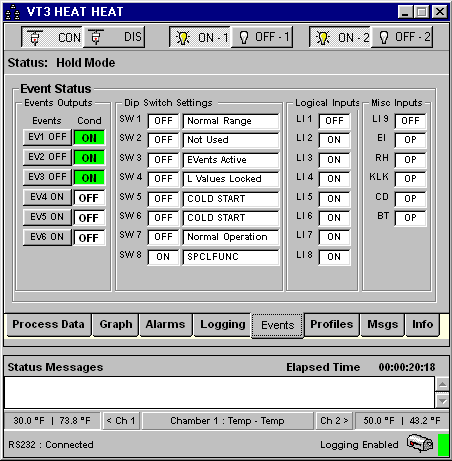

- Events
- displays status of events, dipswitch
settings and logical inputs.

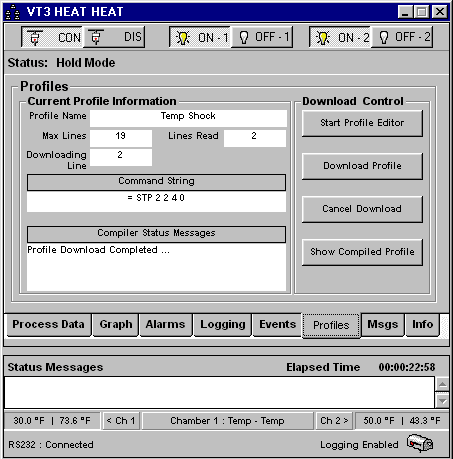

- Profiles
- allows users to create and download
test profiles to a chamber.

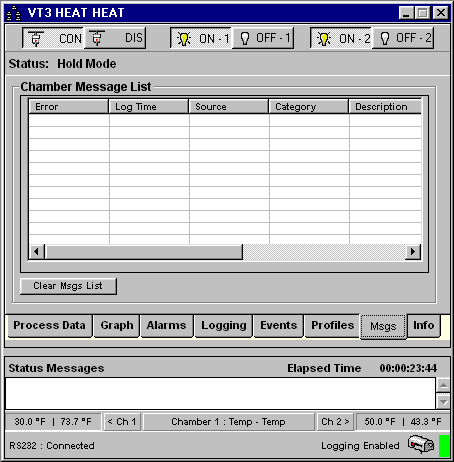

- Messages
- displays a list of all application
and chamber error messages.

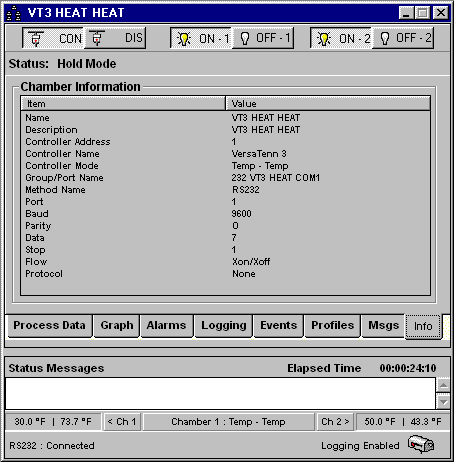

- Info
- displays diagnostic chamber and
communication protocol data and settings.
|
